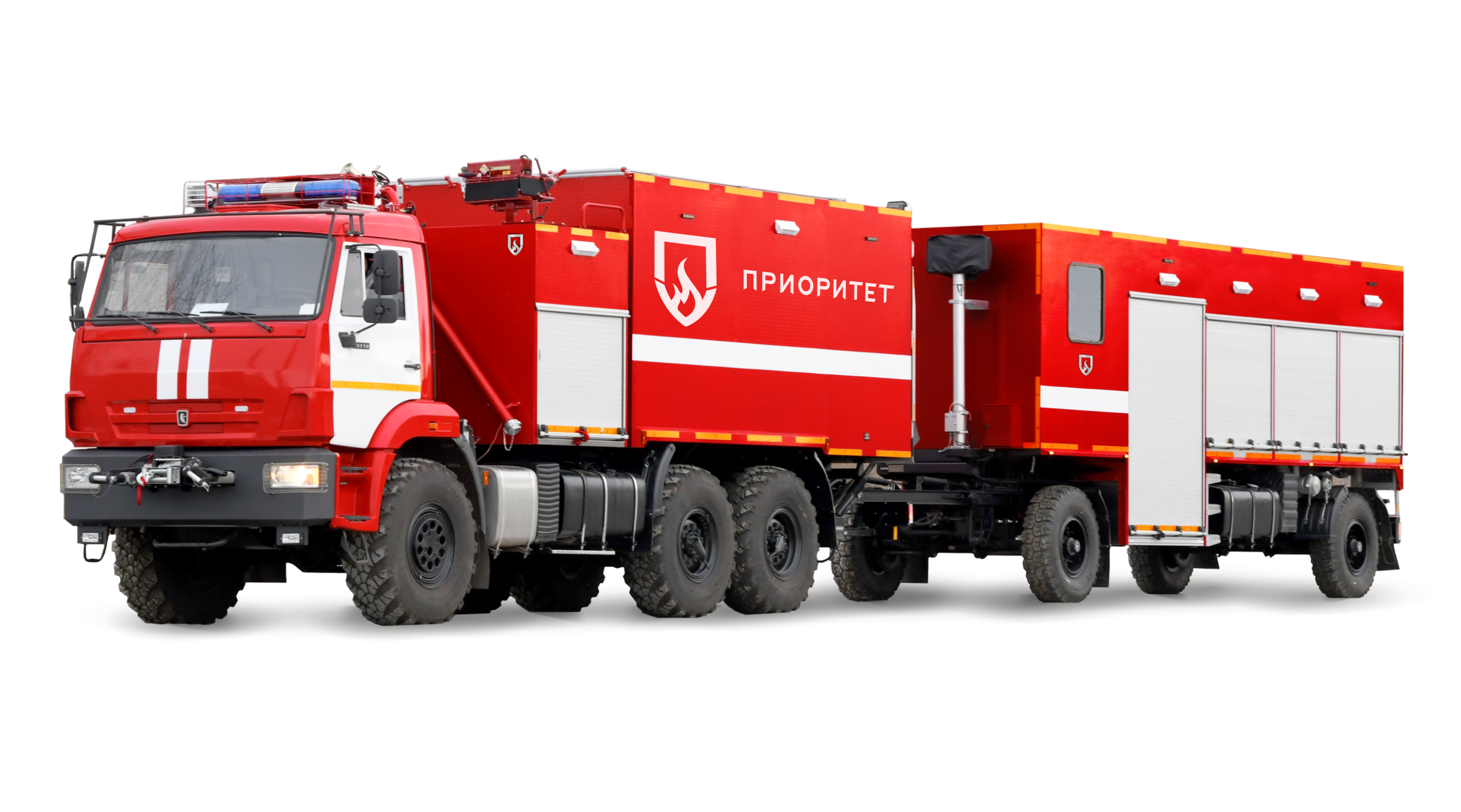

Hose tender AR- 2, trail pump with submersible pumps PPNS-120
Fire-fighting pumping stations
Hose tender АR-2 designed for transportation of fire hoses, mechanized laying and collecting of hose lines, extinguishing fires with water and air-foam jets using fire monitors. PPNS-120 is intended for: water intake from hard-to-reach water sources (steep or swampy banks, bridges, berthing structures, etc.) from a suction height of at least 25 m and from a distance of at least 25 m from the water source; water supply through main fire hoses directly to portable fire monitors or to fire trucks, with the consecutive water supply water supply to the source of combustion.
KAMAZ 43118
6x6
6x6
chassis
JOHSTADT
NP 8000
NP 8000
pump
130 L/sec
pump capacity
2х
door
door
cab
3 people
crew
Технические параметры
| CHASSIS | KAMAZ-43118, 6×6 |
| SUPERSTRUCTURE | Aluminum frame, covered with aluminum sheets, weldless. Roller shutters |
| WATER SUPPLY FROM GEOMETRIC SUCTION HEIGHT OF THE COMBINED PUMPING UNIT | 25 m |
| HYDRAULIC LIFTING PLATFORM (TAIL LIFT),
PLATFORM loading CAPACITY |
1000 kg |
| pump
|
JOHSTADT NP 8000 or equivalent
Capacity 130 l / s.
Two HSP4000 single-stage submersible centrifugal pumps with hydraulic drive.
Water intake at water depth from 400 mm |
| AUTONOMOUS DIESEL ENGINE OF PUMP DRIVE | KAMAZ 740.50-360 |
| HOSE RECOVERY UNIT | Diameter 150 and 80 mm
two hose reels for hoses with diameter 50mm |
| PRESSURE HOSES | The total length of the exported pressure hoses with a diameter of 150 mm- 1200 m.
The total length of the exported pressure hoses with a diameter of 80 mm is 800 m The total length of the exported pressure hoses with a diameter of 50 mm is 320 m |
| CAB OF AR-2 | 2-door, 3-seat |
